Why factory layout matters
The layout decides how product, packaging, people and waste move through your factory. A poor layout means long walks for operators, conveyors that cross each other, no room for maintenance, and a line that cannot grow. A good one keeps product flowing in one direction, keeps operators where they are needed, and leaves space for the next machine.
What we plan
- Product flow. A logical path from raw material to pallet, with as few transfers and turns as possible.
- Machine and conveyor positions. Machines placed for access, cleaning and changeovers, and conveyors sized for accumulation between them.
- People. Operator positions, walkways, guarding and safe access to every machine.
- Hygiene zones. Separation between raw and finished product, and between processing and packing areas, where your process needs it.
- Services. Power, compressed air, water and drainage, planned with your site team.
- Future growth. Space and connection points for the machines you plan to add later.

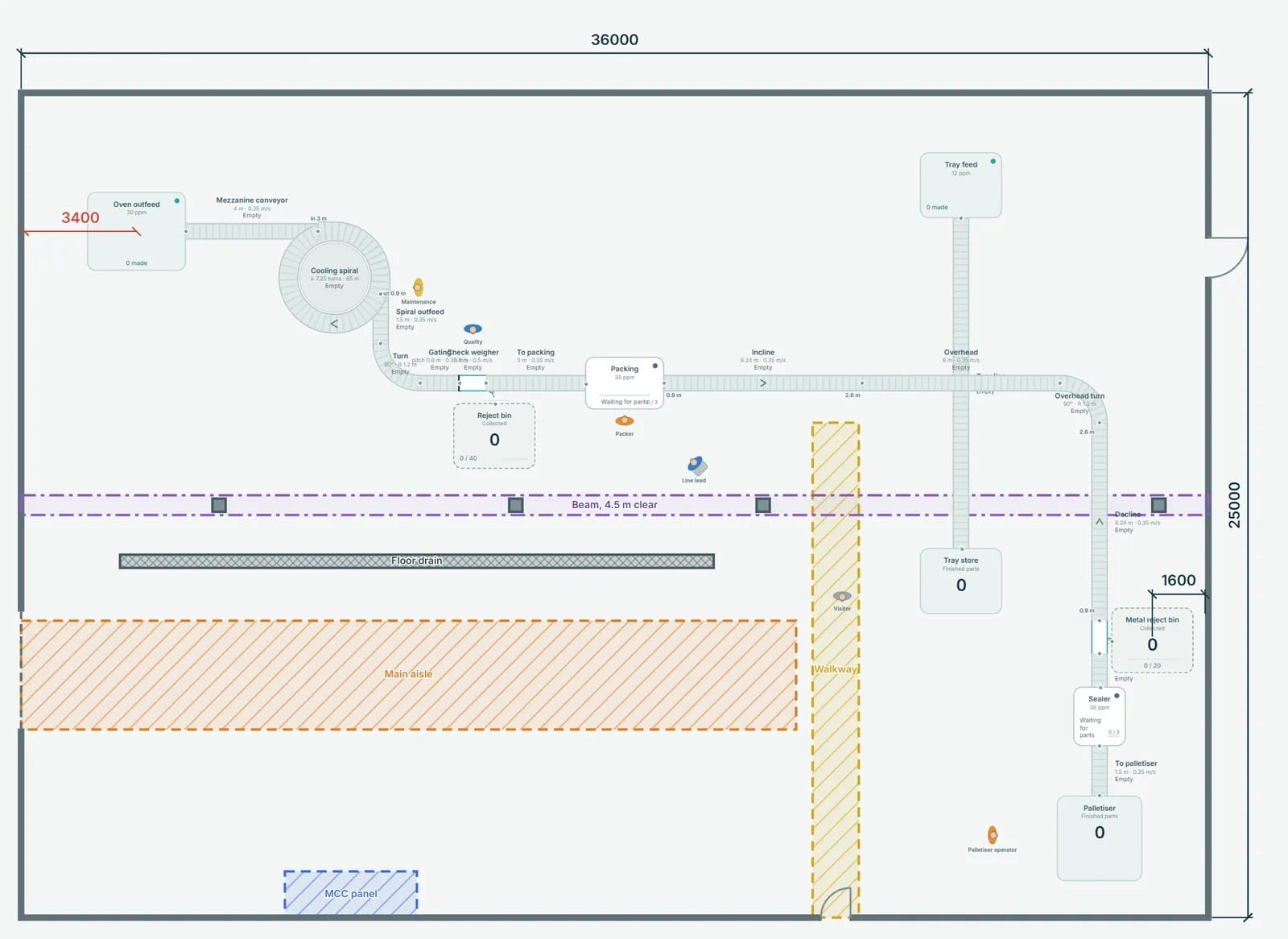

Layouts checked by simulation

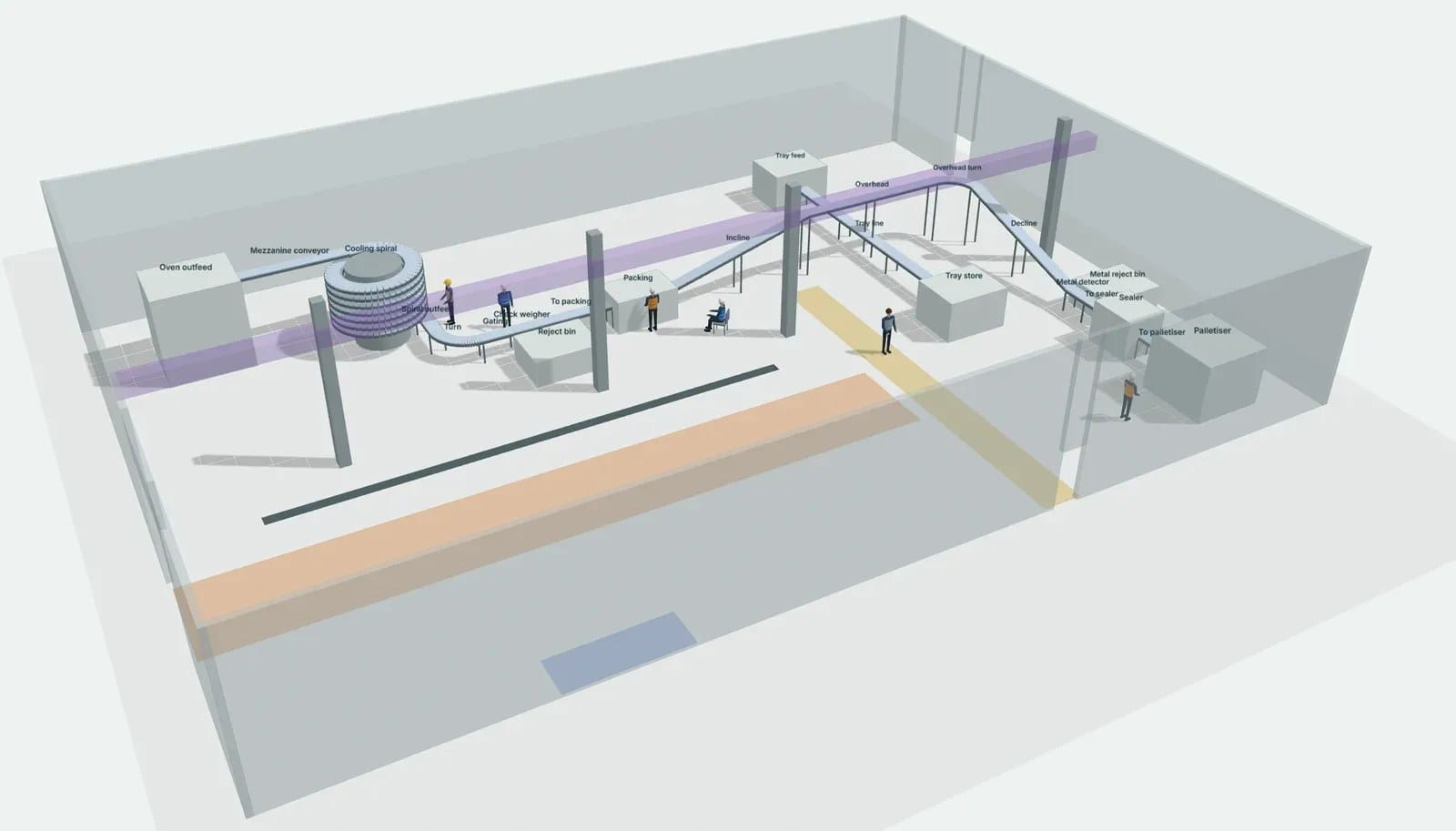

A layout drawing shows where things go; a simulation shows whether the line will actually deliver. We lay out and simulate lines in LineLab, a production line layout and simulation tool, to check the output of the whole line, find bottlenecks, and size buffers between machines. The same model can be viewed in 3D, so your team can see the line in your space before anything is moved.
New lines, upgrades and relocations
- New lines and new factories. Planning from an empty floor, so machines and services go in the right place first time.
- Upgrades. Fitting new automation into an existing line with minimal disruption to production.
- Relocations. Moving and re-planning lines, often an opportunity to fix layout problems that have built up over years.
Common questions
What is factory layout design?
Factory layout design is planning the position of machines, conveyors, workstations and storage so that product, people and materials move efficiently and safely. It affects output, labour, hygiene and how easily the factory can grow.
What are the main types of production line layout?
Common layouts are straight lines, U-shaped lines and L-shaped lines. Straight lines are simple and easy to expand; U-shaped lines keep operators close together and save length. The right choice depends on your space, product flow and how many operators you have.
Can you fit a new machine into my existing layout?
Usually, yes. We measure your space, model the current line, and show where the new machine fits and what it means for the rest of the line.
Do you plan the whole factory or just the line?
We focus on production and packing lines and the space around them, working with your site team, builders and other suppliers where the project is larger.
Next steps
Layout planning is part of every project study, and of every turnkey line we deliver. To plan a layout, contact us.
